Fe-po esophageal monitoring system

This product is a temperature measuring device that can continuously measure and digitally display the temperature inside the esophagus by connecting it to a dedicated catheter when percutaneous catheter cardiac ablation is performed.

Temperature measurement system

This system is used for outputting the digital display when measuring esophageal temperature continuously.

Controlled medical devices　Continuous measurement electronic thermometer
Controlled medical devices requiring special maintenance management

JMDN code : 14032020
Marketing Approval Number:  22800BZX00223000

Accessory

Esophageal temperature connecting cable（accessory）

Interconnection cable for catheter and temperature measurement system

Specifications/Packaging

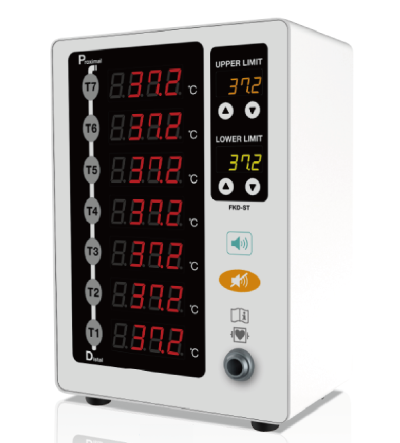

Temperature measurement system(Type:FKD-SP)

Temperature measurement range	-20℃～＋75℃
Size ( width × height × depth）	155.7mmｘ221.7mmｘ100.9ｍｍ
Weight	2.5kg
Power supply	AC100V 50/60Hz
accessory	Attachment metal parts for IV pole

Accessory

CJY-25CRS5S	Esophageal temperature connecting cable

Concomitant medical devices

FKD Esophageal Ｍonitoring System (Catheter)

Catheter for continuous measurement of temperature in the esophagus

Controlled medical device Electrodes for transesophageal external cardiac pacemakers
JMDN code: 41474000
Medical device approval number: 22800BZX00224000
